Description
ap racing pedals AP CP5500 Floor Mounted Pedal Box Cylinders Towards Bulkhead – C Bradley MotorsportAP Racing CP5500 605U Floor Mounted 3 Pedal Assembly Cylinders Towards Bulkhead. Designed for comfort and control. This updated pedal box has a new optimised machined from billet base plate and pedals with adjustable footpads to alter pedal ratio's. The throttle pedal has been updated to include additional features to aid connection to bell cranks and cables. All pedal pivots now feature ball bearings. The updated base plate and pedals together with

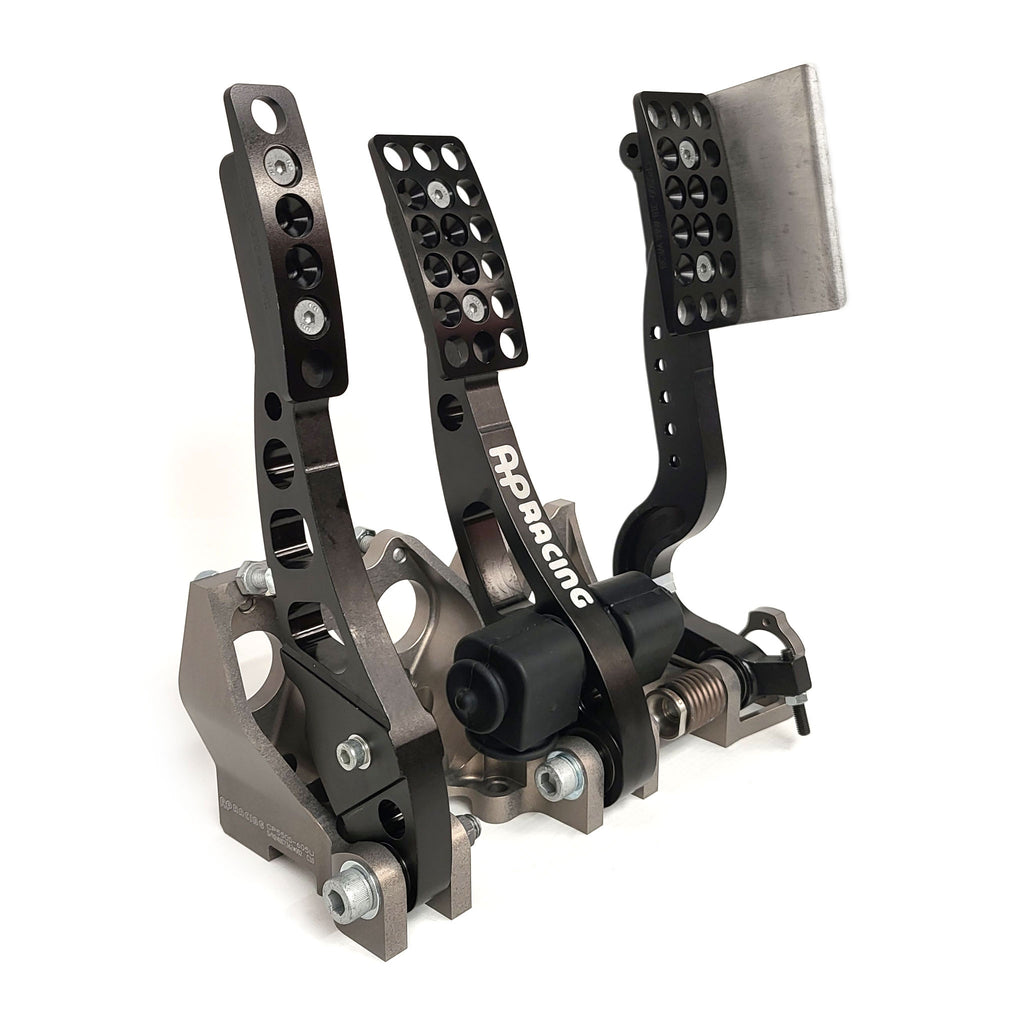

AP Racing CP5500-605U Floor Mounted 3 Pedal Assembly Cylinders Towards Bulkhead.
Designed for comfort and control. This updated pedal box has a new optimised machined from billet base plate and pedals with adjustable footpads to alter pedal ratio's. The throttle pedal has been updated to include additional features to aid connection to bell cranks and cables. All pedal pivots now feature ball bearings.
The updated base plate and pedals together with low friction treatments and a high spherical balance bar bearing set high standards in pedal box efficiency.
Features
- Optimised, Lightweight Aluminium base plate, machined from billet.
- Optimised, Lightweight Billet Throttle, Clutch & Brake pedals with improved twist resistance.
- Throttle pedal with additional features and side plate.
- Adjustable forward and rear stops.
- Return Spring.
- 9 Different footpad positions.
- Side Plate.
- All pedals pivot on ball bearings.
- Brake and Clutch pedal Ratio 4.85:1.
- Adjuster cable included with assembly.
- 10 mm balance bar fitted with rubber boots to prevent dirt ingress.
Suitable Master Cylinder Ranges
Suitable for use with AP Master Cylinders CP2623 & CP5623. Recommended Push Rod Length (cylinders with longer pushrods can be cut down).
- Brake 88.0 mm.
- Clutch 65.0 mm.
Cylinder Options
- No Cylinders
- 3x AP Racing CP2623 Master Cylinders (2x 0.625" & 1x 0.700")
Other Bore Sizes available on request.
Optional Extras
